ESE Lightning Arrester Manufacturer in India
Ennob, a leading ESE Lightning Arrester Manufacturer in India, offers a wide range of advanced solutions for effective lightning protection. These cutting-edge devices are designed to record and indicate the number of lightning strikes safely discharged by Ennob’s lightning protection systems. Engineered using high-quality raw materials, our products are tailored to meet specific customer requirements. The primary function of the ESE Active Lightning Protection System is to capture lightning strikes and safely channel the discharge current into the ground.
ESE LIGHTNING ARRESTER - ALFA S-SJ
Ennob, a trusted ESE Lightning Arrester supplier, offers a safe and reliable solution to protect your building or solar project from direct lightning strikes. Also known as an Active Lightning Arrester, the ESE Lightning Arrester delivers an extended protection radius, reducing the need for multiple arresters and down conductors while ensuring complete and efficient lightning protection.
- Model – BAKIRAL ALFA S/J
- Protection Radius - 107mtrs as per NFC 17-102
- Also available in Protection Radius of 125mtrs
| H (m) | Protection Level | |||
| I | II | III | IV | |
| 2 | 31 | 35 | 39 | 43 |
| 3 | 47 | 52 | 58 | 64 |
| 5 | 79 | 86 | 97 | 107 |
| 10 | 79 | 88 | 99 | 109 |
| 20 | 80 | 89 | 102 | 113 |
Ask for best Price

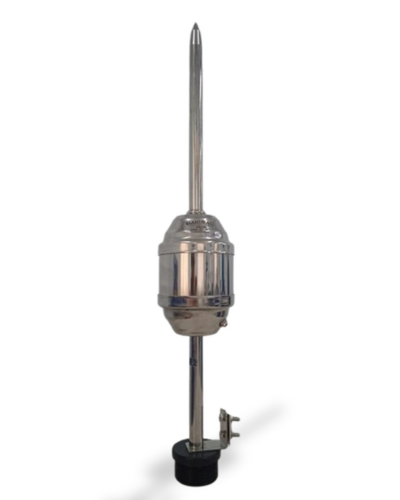

ESE LIGHTNING ARRESTER - ZEUS
Ennob’s Early Streamer Emmision air terminal, also known as ESE or as an ionizing lightning protection, is an external lightning protection system with unique technology. This ESE air terminal is also known as active lightning rod.
- GI Elevation Mast
- Guy wire set
- Down Conductor
- Test Link
- Earthing Electrodes
| H (m) | Protection Level | ||||
| I | II | III | IV | ||
| 2 | 31 | 35 | 39 | 43 | |
| 3 | 47 | 52 | 58 | 64 | |
| 5 | 79 | 86 | 97 | 107 | |
| 10 | 79 | 88 | 99 | 109 | |
| 20 | 80 | 89 | 102 | 113 | |

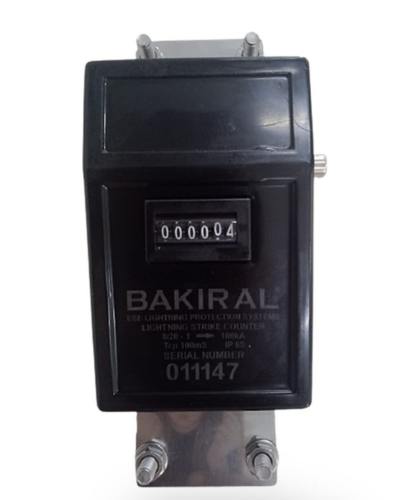

STRIKE COUNTER
Strike Counters are very useful tools in lightning protection installations because they provide first-hand information on whether the installation has been struck by lightning and thus whether there is a need for any subsequent verification or extra maintenance beyond the standard provisions ( (UNE-EN IEC 62305, UNE 21186, NF C 17 102, NP4426, etc.).
Our Lightning Strike Counters are of exceptional quality and are widely used for counting lightning discharges. From Noida, UP, India, we are a leading ESE Lightning Arrester Supplier and Exporter of Lightning Strike Counters. Our Lightning Strike Counters accurately count all lightning events for future reference. Extensive quality control ensures that only flawless Counters reach buyers. We provide Counters at reasonable prices.
- Current detection ranged from 2 to 200 kA
- Mechanical Counter with 6 Digits That Cannot Be Reset
- Mounting is simple
- There is no need for an external power supply
Specifications:-

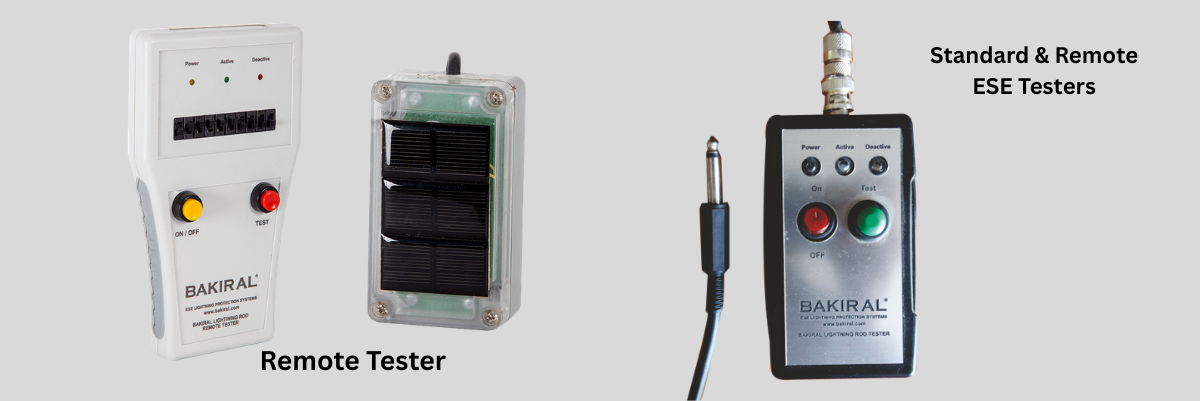

STANDARD TESTER
The STANDARD TESTER or ESE Tester is a sophisticated tool for analysing lightning rods with electronic early streamer emission (ESE). This device is intended for testing ESE lightning rods. It employs advanced testing methods to determine various lightning rod functional parameters.
The Standard ESE Tester enables advanced functional analysis to detect any abnormalities in lightning rod behavior.
- Comes with Testable Strike Counter
- Testable with Remote Tester (Range 100 mtrs)
REMOTE TESTER
It is also known as the Remote Testing Device; it is based on the inductive principle, and they are available in remote or manual testing options. Ennob’s Remote Testers are available used for checking the perfect functioning of ESE active body. However, to meet the urgent and bulk requirements, we at Ennob maintain a large stock of testers at our spacious and modern warehouse.
- There are options for remote and manual testing.
- Based on the inductive principle
- Useful for determining the health of the ESE active body
- Remote tester with solar panel for testing healthiness up to 100 meters away
Advantages:-
How Our ESE Lightning Arrester Works!
The principle of an early streamer emission lightning conductor is to artificially generate, with the aid of an ionization mechanism, an early upward leader occurring before the other natural upward leaders, in order to establish a privileged impact point of the lightning strike. Diagram showing the operating principle for capturing a lightning strike using an early streamer emission conductor
Because the capture of a lightning strike is quicker than with a lightning rod, this technology can be used to protect zones spread over a wider area, thus ensuring the protection of large structures.
- BAKIRAL® ESE Lightning Rods, fulfills standards UNE 21 186 and NFC 17–102
- Radius of protection certified and specific level gain in triggering time value
- Effective performance in all types of weather
- Fully effective even after being subjected to several lightning strikes
Major Factors to Consider Before Buying ESE Lightning Arrester
1. Whether the ESE Lightning Protection System is Original or not?
Before buying ESE Lightning Arresters, you should always ask for the Custom Duty Receipt, Bill of Lading (Airway Bill) and Certificate of Origin. 9 out of 10 suppliers will fail to provide you with these documents.
Demerits
At the event of lightning strike, these duplicate lightning arresters will not be able to protect your building & structures from lightning damages.
2. Is the ESE Lightning Arrester tested for 100kA in 10/350ms waveform?
91% of ESE Lightning Arrester manufacturers are not getting their product tested as per NFC 17-102 standards and yet they claim that they comply with NFC standards for ESE Lightning Arrester.
Demerits
Such Lightning Arresters can protect you from minor lightning strikes but not from the severe ones and that can impact on a loss of human life too.
3. Can we test the ESE Lightning Arrester?
ESE LightningProtection System comes with the warranty of 10-30 years but almost 87% ESE LightningArresters are not testable. Means you cannot test them at your end whether ESE Lightning Protection System is working or not. Whether it can protect you or not?
Demerits
Just by looking from outside it is very hard to tell if a Lightning Arrester is damaged or is in a working condition. And a damaged ESE Lightning Arrester cannot protect your costly infrastructures or manpower’s from Lightning Strikes.
Stay safe from lightning strikes with our superior Lightning Arresters and Chemical Earthing.
